Industrial Grade Rasper for Efficient Grinding and Pulping of Cassava Root Potato and Tuber Crops
Product Details:
| Place of Origin: | China |
| Brand Name: | ZY |
| Certification: | ISO |
| Model Number: | PR500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Packaging Details: | simple packing |
| Delivery Time: | 20days after received the down payment |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 2set per month |
|
Detail Information |
|||
| Machinery Function: | Cassava Root Cutter | Color: | Silvery White+ Green |
|---|---|---|---|
| Origin: | Henan，China | Brand: | ZY |
| Material: | Stainless Steel 304 | Power: | 200kw ,220kw , 250kw , 300kw ,315kw |
| Mechanical Bearing: | SKF brand | Capacity: | 22-25t/h Fresh Cassava |
| Speed: | 1450rpm | Model: | PR500 |
| Feature: | Premium Tuber Mill | Usage: | Capacity-Customized Design |
| Guarantee: | 1year | Quality: | Superior Grade |
| Final Products: | Superfine Tapioca/Potato Starch | ||
Product Description
Industrial Grade Rasper for Efficient Grinding and Pulping of Cassava Root Potato and Tuber Crops
Main Features of cassava crushing machinery :
Rasping represents the key initial stage in the starch production process, whose core purpose is to break down all tuber cells and fully release the internal starch granules. The resulting slurry is a mixed mixture composed of pulp (cell wall residues), fruit juice, and starch granules.
Equipped with modern high-speed raspers, this rasping procedure is completed in a single pass to achieve high efficiency.
A stable feeding speed into the rasper is crucial to guarantee a consistent material flow throughout all subsequent steps of the starch production line.
Equipped with modern high-speed raspers, this rasping procedure is completed in a single pass to achieve high efficiency.
A stable feeding speed into the rasper is crucial to guarantee a consistent material flow throughout all subsequent steps of the starch production line.
Type of Cassava Rasper :
| PR350 | PR500 | PR600 | |
|---|---|---|---|
| Main shaft rotating speed (r/min) | 2100 | 2100 | 2100 |
| Drum diameter (mm) | Φ840 | Φ840 | Φ840 |
| Drum width (mm) | 350 | 500 | 600 |
| Motor power (kw ) | 110 | 160 | 200-250 |
| Capacity | 15-20t/h | 20-25t/h | 30-35t/h |
Advantages of Cassava Rasper :
- Combines advanced technology and industrial expertise, fitted with genuine SKF bearings and high-grade German belts for stable long-term operation.
- All-stainless steel compact structure with observation window for real-time blade monitoring, easy to operate.
- High rotating speed ensures fine grinding and high starch extraction rate; reversible rigid blades guarantee high efficiency.
- Quick-change blades and easy screen removal for simple maintenance and fast part replacement.
FAQ:
1. Are you the manufacture or trading company?
Answer: We are the manufacturer with professional produce experience on starch machine and design more than 13 years. We own both of Domestic and international sales department.
2. Where is your factory located?
Answer: Our factory is located in Zhengzhou city, Henan province, welcome to visit.
3. What is your guarantee of machine ?
Answer: usually our guarantee is 1 years.

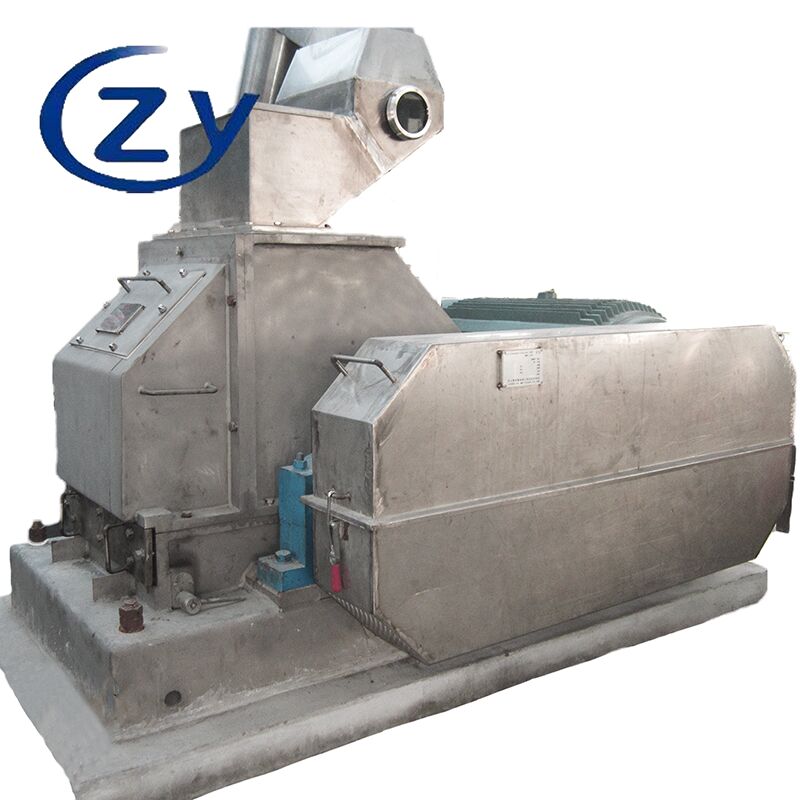

The Photo of Rasper :
