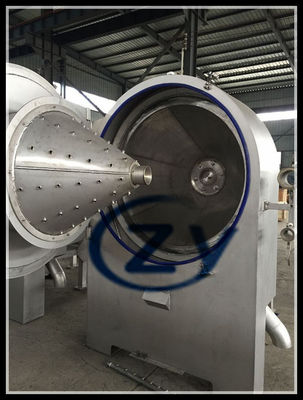

Fresh Cassava Starch Extraction Sieves 30kw Equip With Wedge Wire Screen 60micron

Fresh Cassava Starch Extraction Sieves 30kw Equip With Wedge Wire Screen 60micron
Fresh Cassava Starch Extraction Sieves 30kw Equip With Wedge Wire Screen 60micron Fresh Cassava Starch Extraction Sieves 30kw Equip With Wedge Wire Screen 60micron

Large Image :  Fresh Cassava Starch Extraction Sieves 30kw Equip With Wedge Wire Screen 60micron

Product Details:
Place of Origin: China
Brand Name: ZY
Certification: ISO
Model Number: CS1200
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: bare packing
Delivery Time: 20days
Payment Terms: L/C, T/T,
Supply Ability: per month 20set
Detailed Product Description
Brand: ZY Material: SS304
Power: 15-45kw Voltage: 380V50HZ
Color: White After-sales Service Provided: Engineers Available To Service Machinery Overseas
Capacity: Diffrent Capacity Warranty: 1 Year
Application: Starch Production Main Motor: Siemens Or China Famous Brand
Name: Centrifugal Sieves
High Light:

Fresh Cassava Starch Extraction Sieves

,

30 kw Starch Extraction Sieves

,

60 micron Cassava Starch Extraction Sieves

Fresh Cassava Starch Extraction Sieves 30kw equip with wedge Wire Screen 60micron



Type of  starch centrifugal sieves

Model Diameter of basket Working model Power kw Weight T
CS850 850mm Continue 15kw-30kw 1.3
CS1000 1000mm Continue 22kw -37kw 1.5
CS1200 1200mm Continue 30kw -45kw 1.8



Production description :

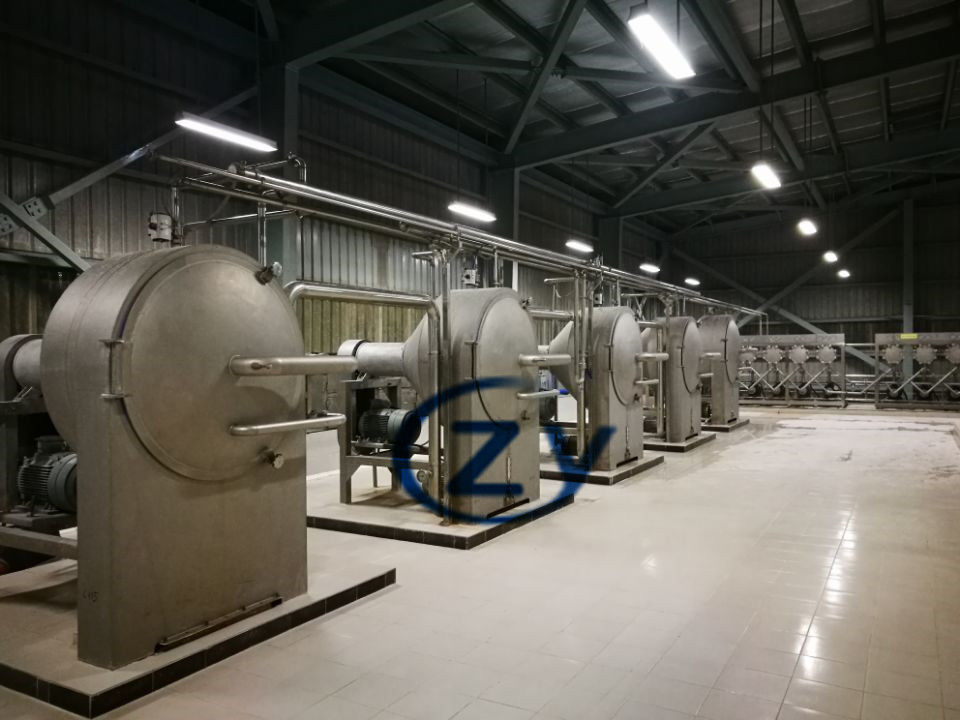

Centrifugal sieve is to separate the fine fiber(pulp) from starch slurry after rasping and desanding process,is widely use in big and middle-sized starch enterprises for extraction of tuber and wheat starch.It features high processing capacity,good power allocation,high starch extraction rate,and easy to install,is a perfect combination of SGM and international advanced technology.









Advantage:



1. Completely closed combination structure,no intermediate tanks needed.

2. Motor of lower placement for better stability.

3. Stainless steel sieve plate ensure longer service live.higher efficiency and better efficiency.

4. Unique stainless steel multi-layer composite screen with higher separation rate improves efficiency.

5. No dead corner,resulting in no bacteria and conforming to food hygiene requirement.

6. Self-design and manufacture defoaming pump which can ensure the stable performance.

7. Stainless steel material.

8. Counter current washing and separating,less water consumption.











Fresh Cassava Starch Extraction Sieves 30kw Equip With Wedge Wire Screen 60micron 0

Fresh Cassava Starch Extraction Sieves 30kw Equip With Wedge Wire Screen 60micron 1
