380v 12m Height SS304 6t/H Starch Drying Machine

380v 12m Height SS304 6t/H Starch Drying Machine

Product Details:

Place of Origin: china
Brand Name: ZY
Model Number: FS10

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Packaging Details: nude packing
Delivery Time: 30days
Payment Terms: L/C, T/T
Get Best Price Contact Now

Detail Information

Material: Stainless Steel304 Capacity: 6t/h
Warranty: 1year Voltage: 380v50hz
Color: Silvery White Height: 12m
Function: Starch Drying Machine Name: Flash Dryer
High Light:

6t/H Starch Drying Machine


12m Starch Drying Machine


SS304 Starch Flash Dryer

Product Description


Starch Flash Dryer Powder Starch Dryer Industrial Starch Rotary Flash Dryer


Type of flash dryer :


Type Capacity Material
VF-2 2t/h dry starch SS304
VF-4 4t/h dry starch SS304
VF-6 6t/h dry starch SS304
VF-8 8t/h dry starch SS304
VF10 10t/h dry starch SS304

Description of flash dryer :

Hot air enters the stirring part of drying chamber from the bottom, material is stirred by stirring device and then the hot air exerts strong shearing, blowing, floating and rotating effect to material.




Working Principle:


The flash dryer consists of dry main engine, feeder, heat source device (hot air furnace or steam), air filter, air blower,

cyclone separator, bag filter, and induced draft fan. The hot air tangentially enters the bottom of the dryer and is driven by the agitator to form a powerful rotating wind field. The paste material enters the dryer by the screw feeder. Under the strong action of the high-speed rotating stirring paddle, the material is dispersed under the action of impact, friction and shearing force, the block material is rapidly pulverized, and it is fully contacted with hot air and heated ,and dry. The dehydrated dry material rises with the hot gas flow, and the classification ring intercepts the large particles. The small particles are discharged from the center of the ring to the outside of the dryer, and are recovered by the cyclone separator and the dust collector. The dry material is not dried or the bulk material is subjected to centrifugal force , fell to the bottom and was crushed and dried.







Q1: Is your company a factory or trading company?

A: Our company is a factory in Henan Province ,with export license

and we have done export business over 20 years professionally.

Q2.What is your main business?

A: ZY is devoted to starch processing machine. The machine of starch processing line , such as : cassava starch line , cassava flour line , potato starch line , sweet potato line , wheat starch ,sago line and garri line

Q3: Where is your factory located? How can I visit there?

A: Our add: Jianshe Road , Zhengzhou City , Henan Province , China.

Warmly welcome to visit us!

Q4: Are your products can be assured ?

A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.

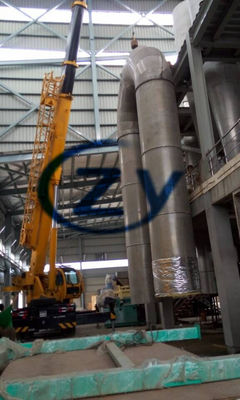

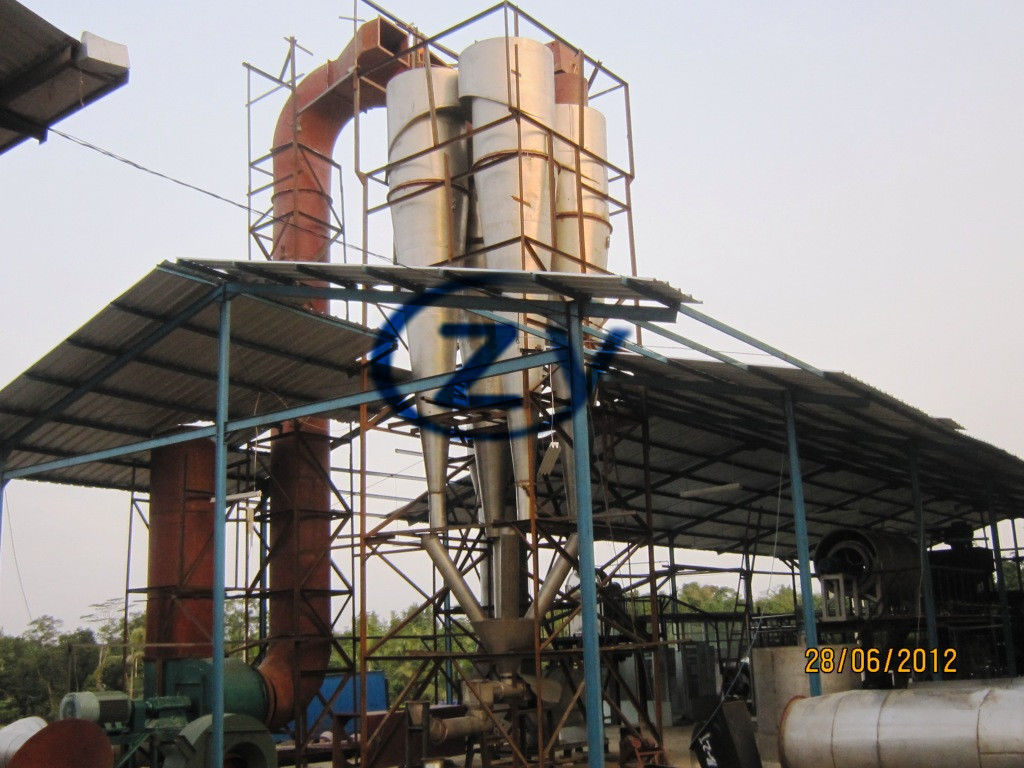

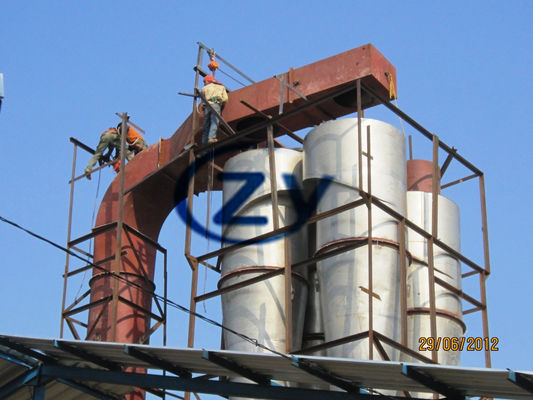

installation photo for flash dryer:

380v 12m Height SS304 6t/H Starch Drying Machine 0

Delivery photo :


380v 12m Height SS304 6t/H Starch Drying Machine 1
