Potato Starch Process Machine Hot Air Dryer Flash Dryer in china

Potato Starch Process Machine Hot Air Dryer Flash Dryer  in china
Potato Starch Process Machine Hot Air Dryer Flash Dryer  in china Potato Starch Process Machine Hot Air Dryer Flash Dryer  in china

Large Image :  Potato Starch Process Machine Hot Air Dryer Flash Dryer in china

Product Details:
Place of Origin: china
Brand Name: ZY
Model Number: FS
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 2000-999999USD
Packaging Details: nude packing
Delivery Time: 30days
Payment Terms: L/C, T/T
Detailed Product Description
Material: Stainless Steel304 Capacity: 2ton/h
Warranty: 1year Voltage: 380v50hz
Color: Silvery White Height: 12m
Function: Starch Drying Machine Name: Flash Dryer
High Light:

potato cutting machine

,

starch washing machine



Potato Starch Process Machine Hot Air Dryer Flash Dryer In China



Feature of flash dryer :



  • There is special cooling device at the bottom of dryer, it can avoid the material deteriorate in the bottom high temperature area.
  • Special air sealing device and bearing cooling device and make the life of transmission device longer effectively.
  • There is special air distributing device, it reduces the resistance of equipment, and make the air speed in drying chamber be balanced.
  • There are classification rings and turbojet plates in the drying chamber, fineness and final moisture of product and be adjusted and controlled.
  • In the drying chamber air speed is fast, drying time is short, it can avoid material stick on the wall and deterioration effectively.





Description of flash dryer :



Flash dryer is designed by ourselves.The hot air enter into the dryer chamber from the bottom of dryer host, it's going into the dryer chamber by inlet entrance. The rotor at the conical base of the drying chamber fluidity product particles in a drying-efficient hot air flow pattern in which any wet lumps are rapidly disintegrated. Using the heat from the air stream, the material dries as it is conveyed. The product is separated using cyclones, and/or bag filters. Typically, cyclones are followed by scrubbers or bag filters for final cleaning of the exhaust gases to meet current emission requirements.






Type of flash dryer :



Type Capacity Material
VF-2 2t/h dry starch SS304
VF-4 4t/h dry starch SS304
VF-6 6t/h dry starch SS304
VF-8 8t/h dry starch SS304
VF10 10t/h dry starch SS304




Description of flash dryer :



Flash Dryer is widely used for drying materials such as paste, cake shape, powder, granules material, etc. It is a new type high drying efficiency and low energy consumption equipment that researched and developed by our company.

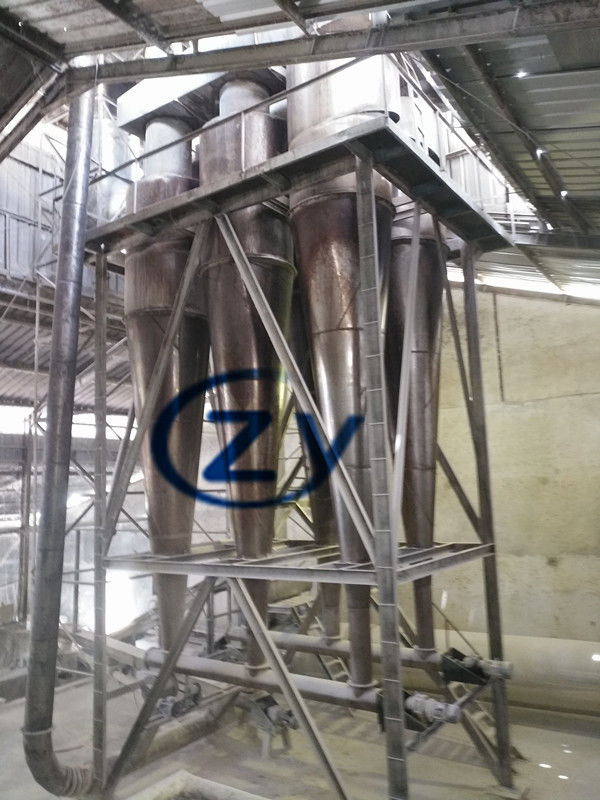

installation photo for flash dryer:

Potato Starch Process Machine Hot Air Dryer Flash Dryer  in china 0

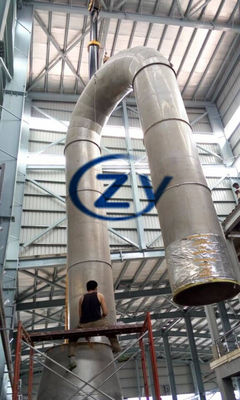

Delivery photo :



Potato Starch Process Machine Hot Air Dryer Flash Dryer  in china 1
