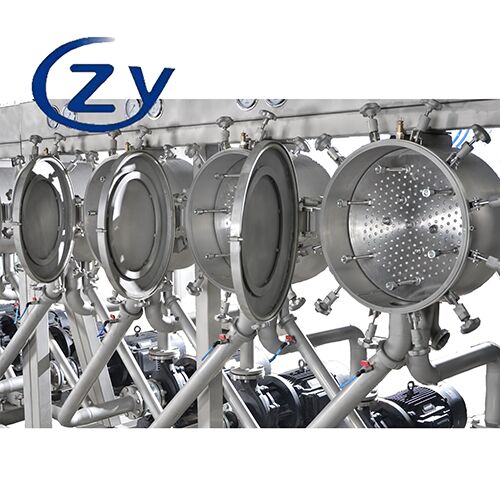

High-Purity Starch Hydrocyclone: Slurry Grading & Impurity Filtration

Working Principle:

Starch milk is pumped through the hydrocyclone’s feed port and into the cylinder’s central cavity by a dedicated starch pump. The slurry then moves into the cyclone tube inlet and flows tangentially into the tube’s inner chamber. Once inside, the material spins along a high-speed helical path, generating strong centrifugal force. Lower-density impurities like proteins and water are subjected to weaker centrifugal pull; as they spiral toward the bottom of the conical tube, they hit resistance and form an upward reverse vortex, which gets discharged through the overflow port. This process allows for precise separation of pure starch from unwanted contaminants, guaranteeing top-grade starch purity for your production line.

Type of Hydrocyclone :

Advantages of hydrocyclone:

1. All-stainless steel build provides superior corrosion resistance, ensuring stable long-term operation even in the harsh wet-processing conditions of starch production lines.
2. Advanced surface treatment technology grants excellent oil and contamination resistance, simplifying daily cleaning and upholding stringent hygiene standards.
3. This hydrocyclone system is widely deployed in starch extraction at large-scale industrial plants, perfectly meeting the processing needs of diverse raw materials like cassava, potato and corn.
4. The integrated hydrocyclone cluster integrates four core functions—concentration, recovery, washing and separation—in a compact unit, streamlining starch purification and boosting overall production efficiency.
5. Cyclone tubes are made of high-strength reinforced nylon, featuring outstanding wear resistance and separation precision to ensure consistent impurity removal and high-purity starch output.
6.


FAQ:

Q1: Is your company a factory or trading company?

A: Our company is a factory in Henan Province ,with export license

and we have done export business over 20 years professionally.

Q2. What is your main business?

A: ZY is devoted to starch processing machine. The machine of starch processing line , such as : cassava starch line , cassava flour line , potato starch line , sweet potato line , wheat starch ,sago line and garri line

Q3: Where is your factory located? How can I visit there?

A: Our add: Jianshe Road , Zhengzhou City , Henan Province , China.

Warmly welcome to visit us!

Q4. What is your guarantee of machine ?

A: usually our guarantee is 1 years.

Muticyclone on site :
