Industrial Desander for Cassava Starch Slurry - High-Efficiency Sand Removal with 304 Stainless Steel for Cassava Lines

Product Details:

Place of Origin: china
Brand Name: ZY
Model Number: DS

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 2000-999999USD
Delivery Time: 15days after sign sales contact
Payment Terms: L/C,T/T
Supply Ability: 20set per month
Get Best Price Contact Now

Detail Information
Color: Silvery White Warranty: 1 Years
Size: Standard Size Material: SS304
Type: DS2 Raw Material: Cassava,potato,sweet Potato
Application: Starch Production Advantage: High Efficient
Final Products: Super Fine Cassava Starch Quality: Top Level
Applicable Industries: Food & Beverage Factory

Product Description

Industrial Desander for Cassava Starch Slurry - High-Efficiency Sand Removal with 304 Stainless Steel for Cassava Lines


1.Work principle:

This desanding equipment leverages centrifugal separation to reliably remove sand and impurities from raw materials. Here’s its working mechanism: an eccentrically mounted water inlet pipe connects to the cylinder. When the water-material mixture flows in through the cyclone sand inlet, it spirals downward along the cylinder wall in a tangential motion. Upon reaching a designated part of the conical section, the flow reverses course and spirals upward along the cylinder’s central axis, with purified water finally exiting through the top pipe.
During this cycle, centrifugal force and gravity push sand and heavy impurities to cling to the cone wall, which then slide down into the bottom slag bucket. The bucket features anti-backflow parts that block accumulated impurities from being swept upward by water flow. When impurities build up to the preset level, just open the manual discharge valve, and residual water will flush the debris out smoothly.


2. Description of Desander :


The desanding hydrocyclone is designed to eliminate sand and mud from crushed starch, cassava and potato slurries. It has broad applications in corn starch, cassava starch, cassava flour, wheat starch, sago and potato starch processing.


3 .Features and benefits:


  • Reinforced stainless steel construction ensures exceptional structural strength and prolonged service life.
  • Precision-machined inlet/outlet connections enable secure operation outside the main working zone.
  • Continuous discharge system supports non-stop operation, eliminating short-cycle-related downtime.
  • Six parallel unit groups boost processing capacity, paired with a series-connected unit for two-stage filtration—ensuring efficient sand removal and complete sediment separation.
  • The 304 stainless steel enclosure facilitates easy cleaning and complies with sanitation requirements.


4. Type of machine :



Type Capacity Material
DS2 10t/h fresh cassava SS304 or nylon
DS4 15t/h fresh cassava SS304 or nylon
DS4+1 20t/h fresh cassava SS304 or nylon
Customized per output SS304 or nylon

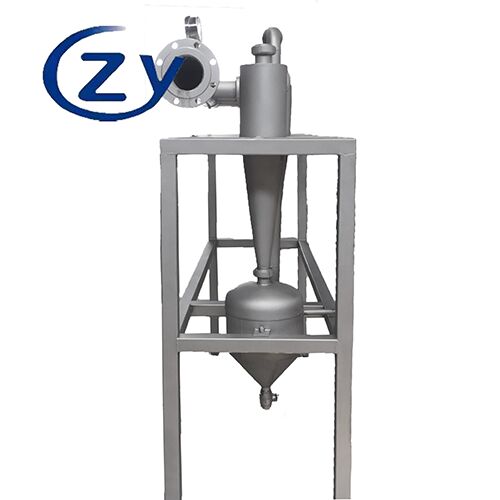

5. the delivery photo :

Industrial Desander for Cassava Starch Slurry - High-Efficiency Sand Removal with 304 Stainless Steel for Cassava Lines 0
